Introduction:
Amazon Elastic Compute Cloud (EC2) is a fundamental component of Amazon Web Services (AWS) that provides scalable, virtual server capacity in the cloud. EC2 allows you to launch virtual instances, customize them according to your needs, and scale your infrastructure on-demand. In this blog post, we will delve into the workings of Amazon EC2 and explore its key components.

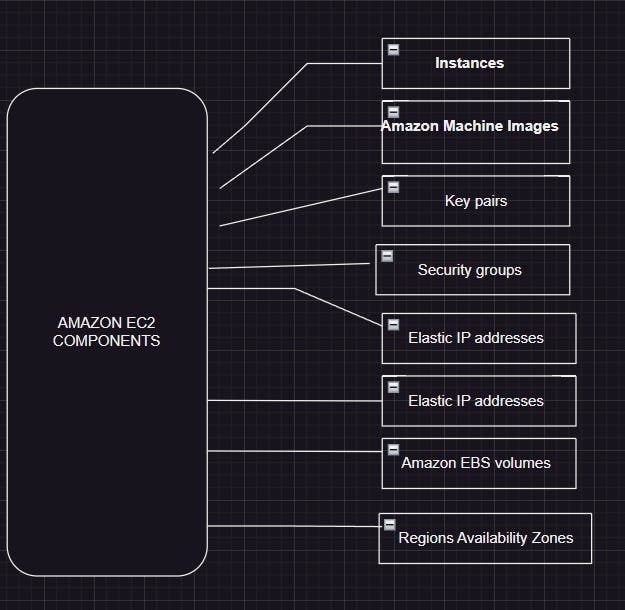

How does Amazon EC2 work?
1. Instances: Virtual Servers at Your Fingertips
At the core of Amazon EC2 are instances, which are virtual servers that run your applications. With EC2, you have a wide range of instance types to choose from, each offering varying CPU, memory, storage, networking, and graphics capabilities. Additionally, you can select the operating system and software packages that best suit your requirements.
2. Amazon Machine Images (AMIs): Preconfigured Templates for Efficiency
AMIs serve as preconfigured templates for your instances. They include the operating system and additional software, saving you valuable time during the setup process. AWS provides a selection of AMIs, but you can also create your own or utilize AMIs shared by other users. This flexibility allows you to streamline the deployment of your applications.
3. Key Pairs: Secure Access to Your Instances
To ensure secure access to your instances, Amazon EC2 employs key pairs. A key pair consists of a public key, stored by AWS, and a private key, which you retain in a secure location. You can utilize key pairs to establish SSH (Secure Shell) or RDP (Remote Desktop Protocol) connections to your instances, enabling secure remote management.
4. Security Groups: Safeguarding Your Instances
Security groups in Amazon EC2 act as virtual firewalls, controlling the inbound and outbound traffic to your instances. By specifying allowed or denied ports and protocols, you can manage access to your applications. Security groups provide an additional layer of security, protecting your instances from unauthorized access.
5. Elastic IP Addresses: Reliable Public Access
Elastic IP addresses offer static IP addresses that you can assign to your instances. This ensures consistent accessibility from the internet. Moreover, elastic IP addresses allow you to remap the address to another instance if the original instance fails or is stopped. This feature enhances the resilience and availability of your applications.
6. Amazon EBS Volumes: High-Performance Storage
For persistent storage needs, Amazon EC2 provides Amazon Elastic Block Store (EBS) volumes. These volumes offer high performance and durability for your data. You can attach EBS volumes to your instances, and they can be used as primary storage or for storing databases, file systems, or backups. EBS volumes also allow you to create snapshots for backup or replication purposes.
7. Regions and Availability Zones: Optimizing Latency and Availability
AWS operates its data centers in multiple physical locations called regions. Each region consists of multiple isolated Availability Zones, interconnected by low-latency networks. By strategically selecting the region and Availability Zone, you can minimize latency and increase the availability of your applications.
What are the benefits of using Amazon EC2?
Amazon EC2 offers many benefits for running your applications on the cloud, such as:
1. Reliability: Amazon EC2 ensures that your applications are highly available and resistant to failures. It achieves this by enabling you to launch instances across multiple Availability Zones within a specific region. Additionally, you can employ tools like Auto Scaling, Elastic Load Balancing, and Amazon CloudWatch to dynamically adjust your capacity based on demand.
2. Security: Amazon EC2 prioritizes the security of your instances and data through multiple layers of protection. You can utilize security groups, network access control lists (ACLs), encryption, identity and access management (IAM), and firewalls to safeguard your resources. Furthermore, Amazon EC2 offers additional security services such as AWS Shield, AWS WAF, and AWS Firewall Manager, which help defend against common web attacks.
3. Performance: Amazon EC2 ensures that your applications deliver fast and consistent performance by leveraging cutting-edge hardware and software technologies. It offers various instance types tailored to different workloads, such as general-purpose, compute-optimized, memory-optimized, storage-optimized, accelerated computing, and bare metal instances. Additionally, features like Enhanced Networking, Elastic Fabric Adapter (EFA), Nitro System, Placement Groups, and Dedicated Hosts enhance network throughput, reduce latency, improve scalability, isolate resources, and provide better control.
4. Cost-effectiveness: Amazon EC2 enables you to optimize costs by paying only for the resources you actually utilize, without any upfront or long-term commitments. You can further reduce expenses through features like Spot Instances (purchasing spare capacity at discounted rates), Reserved Instances (reserved capacity for specific durations), Savings Plans (discounted pricing for consistent usage), AWS Budgets (setting cost thresholds), AWS Cost Explorer (visualizing and analyzing costs), and AWS Cost and Usage Report (detailed cost and usage information).
5. Auto Scaling: With Auto Scaling, you can automatically adjust the number of instances in your Amazon EC2 fleet based on predefined conditions. This helps ensure that you have the right amount of compute capacity to handle varying workloads. Auto Scaling can scale your instances both horizontally (adding or removing instances) and vertically (changing the instance size).
6. Load Balancing: Amazon EC2 provides Elastic Load Balancing, which distributes incoming traffic across multiple instances in a load-balanced manner. This helps improve the availability and fault tolerance of your applications. You can choose between Application Load Balancers for HTTP/HTTPS traffic, Network Load Balancers for TCP/UDP traffic, and Classic Load Balancers for both.
7. Elastic IP Addresses: While mentioned earlier, it’s worth highlighting the flexibility of Elastic IP addresses. You can allocate a static public IP address to your instances and associate it with your AWS account. This allows you to maintain a consistent IP address even if you stop or terminate the instance. Elastic IP addresses are particularly useful for scenarios like hosting websites or running applications that require a fixed IP.
8. Virtual Private Cloud (VPC) Integration: Amazon EC2 seamlessly integrates with Amazon Virtual Private Cloud (VPC), which enables you to create isolated virtual networks within AWS. VPC provides enhanced security and control over your instances by allowing you to define your own IP address range, subnets, route tables, and network gateways.
9. Instance Types: Amazon EC2 offers a wide range of instance types optimized for different use cases. You can choose instances with varying CPU, memory, storage, and network capabilities to meet your specific requirements. Some specialized instance types include GPU instances for accelerated computing, memory-optimized instances for memory-intensive workloads, and storage-optimized instances for applications that require high storage capacity.
6. Spot Instances: Spot Instances allow you to take advantage of unused EC2 capacity at significantly lower prices. With Spot Instances, you can bid on spare compute capacity and run your instances as long as your bid price exceeds the current Spot price. Spot Instances are ideal for workloads that are flexible and can tolerate interruptions, such as batch processing, testing environments, and fault-tolerant applications.
10. Instance Hibernate: This feature allows you to hibernate your instances, preserving the in-memory state, and resume them later. When an instance is hibernated, its EBS root volume is saved, and the instance is stopped. Upon resuming, the instance is quickly restored to its previous state, reducing startup time and preserving data in memory. Hibernate is useful for long-running processes, such as data processing or applications with expensive startup operations.
11. Enhanced Networking: Amazon EC2 provides enhanced networking capabilities to maximize network throughput and lower latency. Enhanced Networking leverages advanced networking technologies such as SR-IOV (Single Root I/O Virtualization) and Elastic Network Adapters (ENA) to deliver higher performance and efficiency. This is particularly beneficial for applications that require high network performance, such as HPC (High-Performance Computing) and big data processing.
12. Dedicated Hosts: With Dedicated Hosts, you have full control over the underlying physical servers that host your EC2 instances. This enables you to bring your existing server-bound software licenses to the cloud or meet regulatory requirements that demand dedicated hardware. Dedicated Hosts provide isolation, security, and control by ensuring that your instances run on dedicated infrastructure.
13. AWS Graviton2 Processors: Amazon EC2 offers instances powered by AWS Graviton2 processors, which are custom-designed Arm-based processors. Graviton2 instances deliver high performance and cost savings for a variety of workloads, including containerized applications, web servers, microservices, and more. Graviton2 processors are built on 64-bit Arm Neoverse cores and provide a balance of compute, memory, and networking.
14. Elastic GPU (EGPU) Instances: Amazon EC2 provides Elastic GPU instances, which allow you to attach GPU resources to your instances to accelerate graphics-intensive workloads. EGPU instances are ideal for applications that require high-performance GPUs, such as rendering, virtual desktops, and machine learning inference. You can choose from a range of GPU types, including NVIDIA and AMD, and attach them to your EC2 instances as needed, enabling efficient GPU utilization and cost optimization.
